Writing Workflows

Ready to dive deeper? This section shows you how to manually create pipelines and understand the .plx language.

Prefer Automated Workflow Generation?

If you have access to Claude 4.5 Sonnet (via Pipelex Inference, Anthropic, Amazon Bedrock, or BlackBox AI), you can use our pipe builder to generate workflows from natural language descriptions. See the Getting Started guide to learn how to use pipelex build pipe commands. This tutorial is for those who want to write workflows manually or understand the .plx language in depth.

Let's build a character generator to understand the basics.

Write Your First Pipeline

Create a .plx file anywhere in your project (we recommend a pipelines directory):

character.plx

domain = "characters"

[pipe]
[pipe.create_character]
type = "PipeLLM"
description = "Creates a character."
output = "Text"
prompt = """
You are a book writer. Your task is to create a character.
Think of it and then output the character description.
"""

This pipeline:

  • Declares a characters domain
  • Defines a create_character pipe of type PipeLLM
  • Outputs plain Text
  • Uses a simple prompt

Run Your First Pipelex Script

CLI:

pipelex run create_character

Python:

Create a Python file to execute the pipeline:

character.py

import asyncio
from pipelex.pipeline.execute import execute_pipeline
from pipelex.pipelex import Pipelex

async def create_character():
    # Run the script with execute_pipe
    pipe_output = await execute_pipeline(
        pipe_code="create_character",
    )
    # Print the output
    print(pipe_output.main_stuff_as_str)

# Initialize pipelex to load your pipeline libraries
Pipelex.make()

# Run using asyncio because our APIs are all async
asyncio.run(create_character())

Then run:

python character.py

Get Your First Pipelex Result

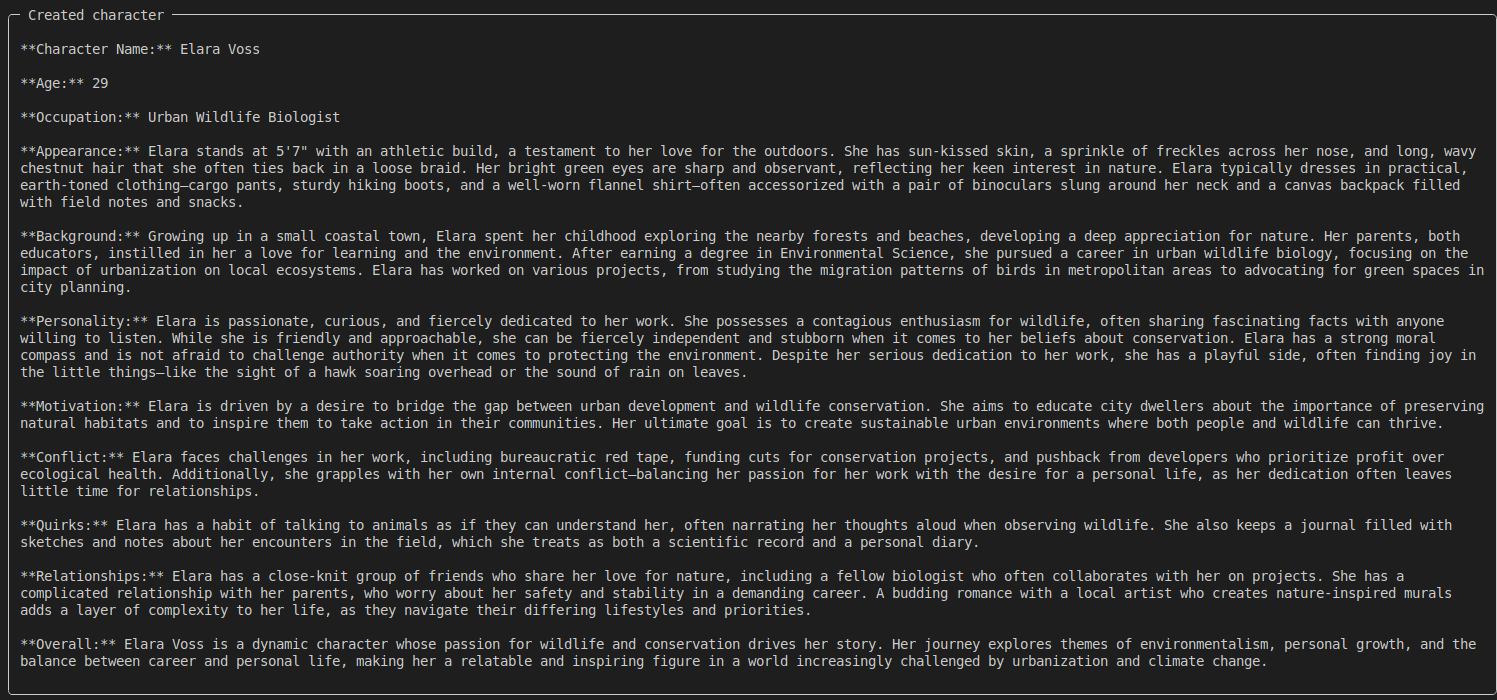

Example of a generated character sheet

Using Specific LLMs

Indicate Your LLM Selection Explicitly

[pipe.create_character]
type = "PipeLLM"
description = "Create a character."
output = "Text"
model = { model = "gpt-4o-mini", temperature = 0.9, max_tokens = "auto" }
prompt = """
You are a book writer. Your task is to create a character.
Think of it and then output the character description.
"""

Or Use an LLM Preset from the LLM Deck

[pipe.create_character]
type = "PipeLLM"
description = "Create a character."
output = "Text"
model = "llm_for_creative_writing"
prompt = """
You are a book writer. Your task is to create a character.
Think of it and then output the character description.
"""

# The llm choice above is defined in `.pipelex/inference/deck/base_deck.toml` as:
# llm_for_creative_writing = { model = "base-gpt", temperature = 0.9 }
# it's a base preset that we provide. you can add your own presets, too.

LLM Presets

We have many LLM presets available by default.

Learn more in our LLM Configuration Guide.

Generate Structured Outputs

Let's create a rigorously structured Character object instead of plain text.

Define the Structure using Pydantic BaseModel

Using Pydantic BaseModel syntax:

characters.py

from pipelex.core.stuffs.structured_content import StructuredContent

# Define the structure of your output here
# This class must inherit from StructuredContent
class Character(StructuredContent):
    name: str
    age: int
    gender: str
    description: str

Keep Structure Files Clean

Keep your StructuredContent classes in dedicated files with minimal module-level code. Pipelex imports these modules during auto-discovery, so any module-level code will be executed.

Define the Structure using Inline Structure Definition

Define structures directly in your .plx file:

[concept.Character]
description = "A character in a fiction story"

[concept.Character.structure]
name = "The character's name"
age = { type = "integer", description = "The character's age", required = true }
gender = "The character's gender"
description = "A description of the character"

Learn more in Structuring Concepts.

Use your Structured Concept in Your Pipe

Specify that your output is a Character instance:

characters.plx

domain = "characters"

[concept]
Character = "A character in a fiction story" # <- Define your output concept

[pipe]
[pipe.create_character]
type = "PipeLLM"
description = "Create a character. Get a structured result."
output = "Character"    # <- This is the output concept for your pipe
prompt = """
You are a book writer. Your task is to create a character.
Think of it and then output the character description.
"""

Concept Naming

The concept name matches the class name (Character), so Pipelex automatically links them.

Semantic Clarity

Defining concepts removes ambiguity—"character" could mean a letter or symbol, but here it clearly means a fictional person.

Run Your Pipeline

The output is now a structured Character instance:

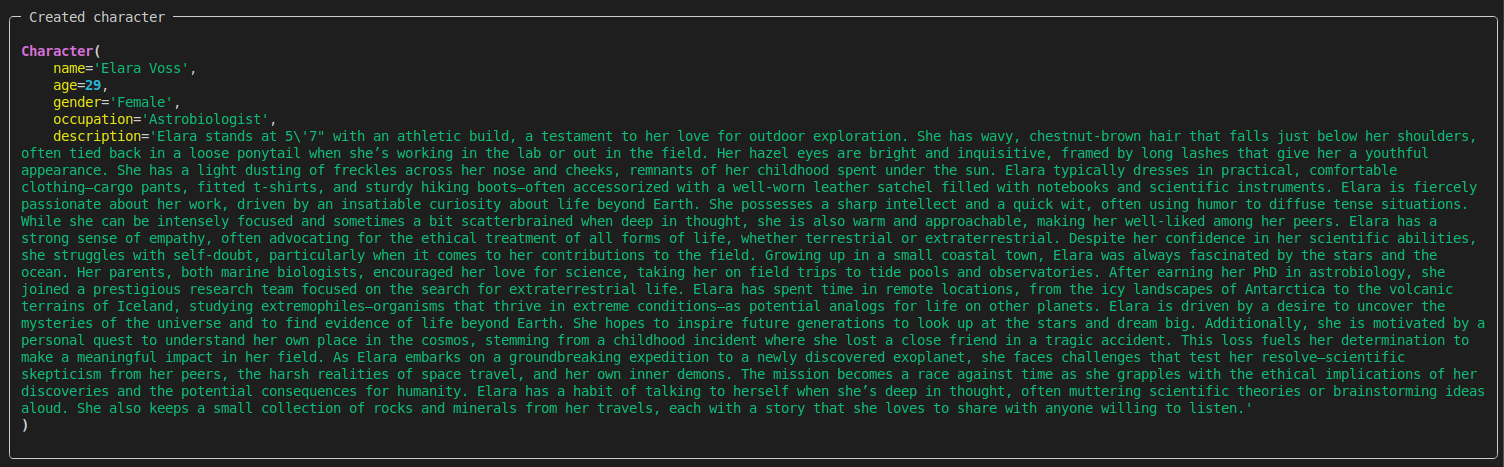

Example of a generated character sheet with structure in JSON

Using Prompt Templates

Pass data into prompts using templates.

Let's process existing characters and extract metadata from their descriptions.

Define the Output Structure

# character_model.py
from pipelex.core.stuffs.structured_content import StructuredContent

# input class
class Character(StructuredContent):
    name: str
    age: int
    gender: str
    occupation: str
    description: str

# output class
class CharacterMetadata(StructuredContent):
    name: str
    age: int
    height: float

Use a Template to Fill Prompts with Data

Template Syntax

Our template syntax is based on Jinja2. Use {{ double.curly.braces }} or the simpler @ prefix (recommended).

[concept]
Character = "A character from a book"
CharacterMetadata = "Metadata regarding a character."

[pipe]
[pipe.extract_character_1]
type = "PipeLLM"
description = "Get character information from a description."
inputs = { character = "Character" }  # <- These inputs are usable in the prompt
output = "CharacterMetadata"
prompt = """
You are given a text description of a character.
Your task is to extract specific data from the following description.

@character.description
"""

Template Variables

@character.description grabs the character stuff from working memory and uses its description attribute.

Learn more about Jinja in the PipeLLM documentation.

Execute from Python

First, create an inputs JSON file:

character_inputs.json

{
    "character": {
        "concept": "character.Character",
        "content": {
            "name": "Elias",
            "age": 38,
            "gender": "man",
            "occupation": "explorer",
            "description": "Elias Varrin is a 38-year-old man, standing at approximately 1.85 meters tall, with a lean, weathered frame shaped by decades of travel through remote and often unforgiving landscapes. His name, though not widely known, carries weight among historians, explorers, and those who trade in whispered legends. Elias has piercing storm-gray eyes that scan every environment with sharp precision, and his ash-blond hair—flecked with early streaks of grey—is usually tucked beneath a wide-brimmed, timeworn hat."
        }
    }
}

Then load and execute:

import asyncio
import json
from pipelex.pipeline.execute import execute_pipeline
from pipelex.pipelex import Pipelex

from character_model import CharacterMetadata


async def process_existing_character():
    # Load inputs from JSON file
    with open("character_inputs.json", "r", encoding="utf-8") as f:
        inputs = json.load(f)

    # Run the pipe with loaded inputs
    pipe_output = await execute_pipeline(
        pipe_code="extract_character_1",
        inputs=inputs,
    )

    # Get the result as a properly typed instance
    extracted_metadata = pipe_output.main_stuff_as(content_type=CharacterMetadata)

    print(extracted_metadata)


Pipelex.make()
asyncio.run(process_existing_character())

Get Result

Example of extracted character metadata

Next Steps

Now that you understand the basics, explore more:

Learn More:

Explore Tools:

Configure:

Cookbook
