Quick-start

This guide shows the basics of Pipelex for the simplest use-cases: LLM calling and structured outputs.

You can find more powerful examples in the Cookbook Examples section of the docs or dive directly into the Cookbook repository.

Your first LLM call with Pipelex

Let's start by running your very first LLM call using Pipelex. For illustration purposes, let's build a character generator. Each example relies on asynchronous execution and typed models for reliable prompts.

Write your first pipeline

First, create a .toml library file in the pipelex_libraries/pipelines directory to store your pipe definition. Run pipelex init-libraries to create this directory if it doesn't exist. For now, keep all your pipeline definitions inside that folder only.

character.toml

domain = "characters"

[pipe]
[pipe.create_character]
PipeLLM = "Creates a character."
output = "Text"
prompt_template = """You are a book writer. Your task is to create a character.
Think of it and then output the character description."""

Run your first Pipelex script

Now, create a .py python file to run your script. You can save it anywhere in your repository.

character.py

import asyncio
from pipelex.pipeline.execute import execute_pipeline
from pipelex.pipelex import Pipelex

async def create_character():
    # Run the script with execute_pipe
    pipe_output, _ = await execute_pipeline(
        pipe_code="create_character",
    )
    # Print the output
    print(pipe_output.main_stuff_as_str)

# Initialize pipelex to load your pipeline libraries
Pipelex.make()

# Run using asyncio because our APIs are all async
asyncio.run(create_character())

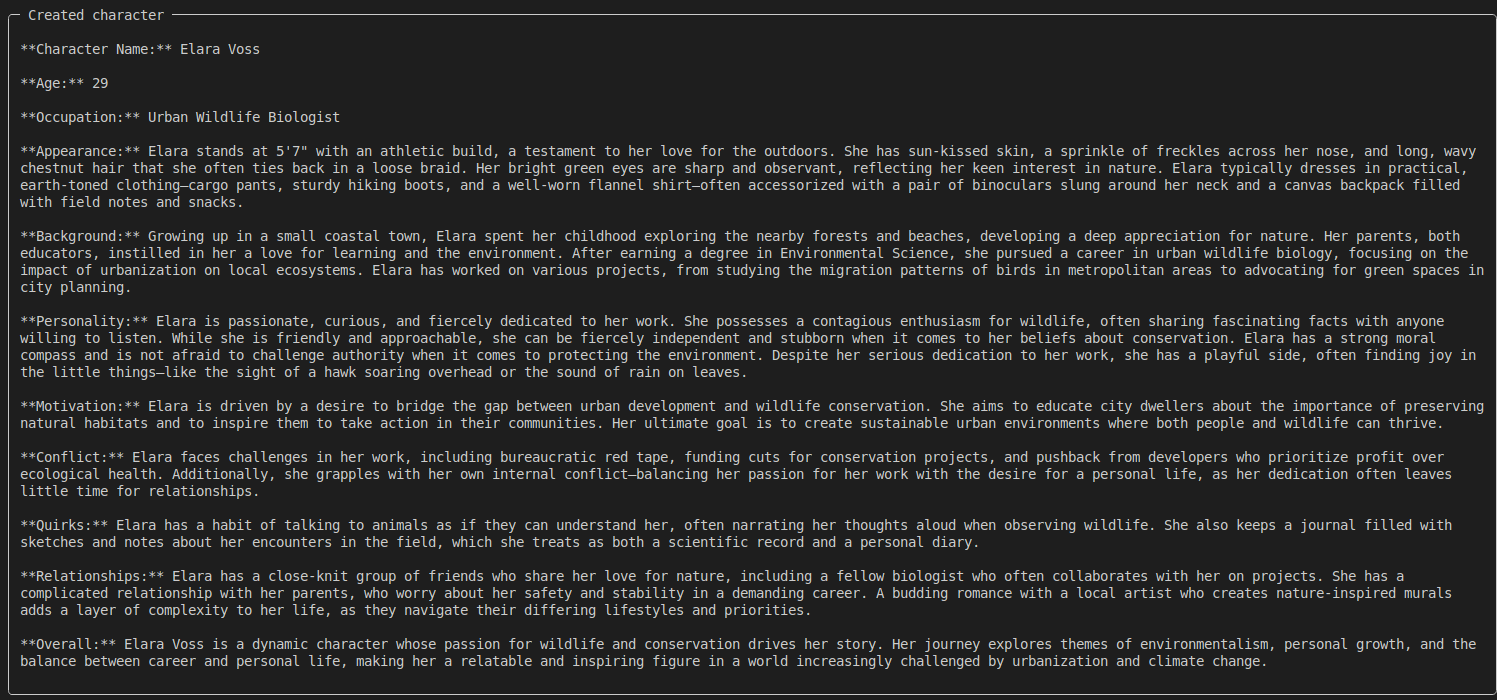

Get your first Pipelex result

python character.py

How to use a specific LLM or LLM provider

Indicate your LLM selection explicitly using the `llm` attribute

[pipe.create_character]
PipeLLM = "Create a character."
output = "Text"
llm = { llm_handle = "gpt-4o-mini", temperature = 0.9, max_tokens = "auto" }
prompt_template = """You are a book writer. Your task is to create a character.
Think of it and then output the character description."""

Or use an LLM preset from the LLM deck

[pipe.create_character]
PipeLLM = "Create a character."
output = "Text"
llm = "llm_for_creative_writing"
prompt_template = """You are a book writer. Your task is to create a character.
Think of it and then output the character description."""

# The llm deck above is defined in `pipelex_libraries/llm_deck/base_llm_deck.toml` as:
# llm_for_creative_writing = { llm_handle = "best-claude", temperature = 0.9 }
# it's a base preset that we provide. you can add your own presets, too.

💡 We have a lot of LLM presets available by default. Make sure you have credentials for the underlying LLM provider (and added your API key to the .env) and select the one you want!

Learn more about LLM presets, LLM handles and LLM deck in our LLM Configuration Guide

Generate a structured output

Let's say that we no longer want plain text as output but a rigorously structured Character object.

Define the model

Using the Pydantic BaseModel syntax, define your object structure as a Python class, in the pipelex_libraries/pipelines directory:

pipelex_libraries/pipelines/characters.py

from pipelex.core.stuff_content import StructuredContent

# Define the structure of your output here
# This class must inherit from StructuredContent
class Character(StructuredContent):
    name: str
    age: int
    gender: str
    description: str

ℹ️ We'll soon make it possible to define your structure directly in the .toml file, without having to write any python code

Improve the pipeline

It's time to specify that your output be a Character instance. Use the output field for that purpose.

💡 Here, the concept name matches the class name (ie. Character), the Character class will automatically be considered as the structure to output.

pipelex_libraries/pipelines/characters.toml

domain = "characters"

[concept]
Character = "A character is a fiction story" # <- Define here your output concept so that it is linked to the class name

[pipe]
[pipe.create_character]
PipeLLM = "Create a character. Get a structured result."
output = "Character"    # <- This is the output concept for your pipe
prompt_template = """You are a book writer. Your task is to create a character.
Think of it and then output the character description."""

💡 Defining the Character concept as "A character is a fiction story" might seem obvious but… think of it: "character" can also mean a letter or symbol in a text. Defining concepts is the best way to avoid any ambiguity and make sure the LLMs understand what you mean.

Run your pipeline

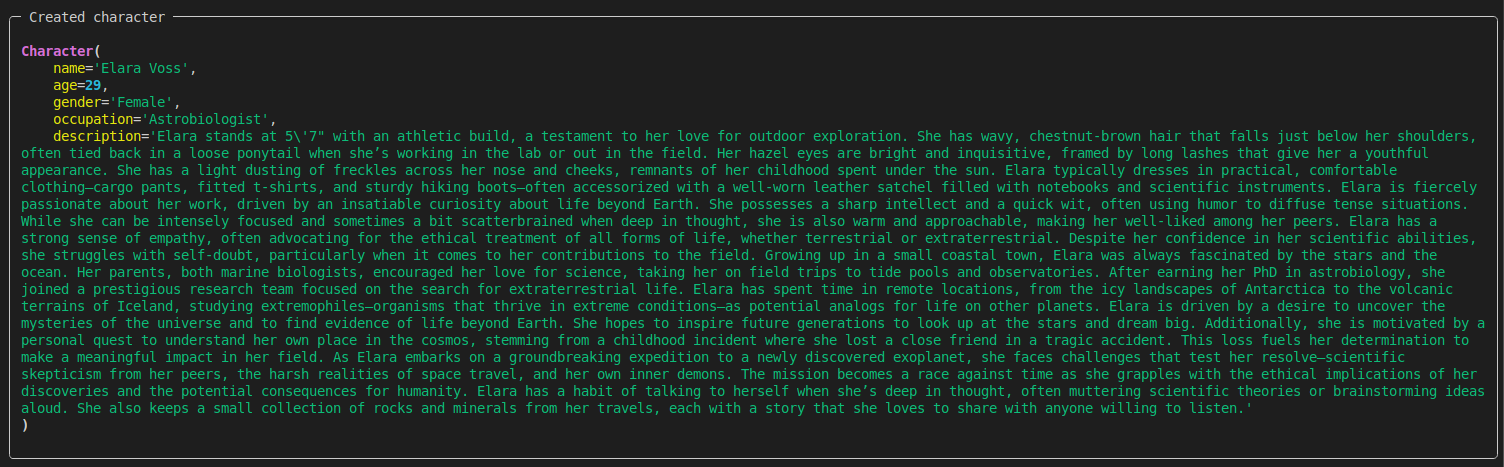

As you can see, the output is a Character instance.

Generate using information in a prompt template

What if you want to pass some data into a prompt? You can do that using a prompt template.

In this example, we no longer want to generate characters. We want to process existing ones, especially their description attributes.

We want to extract structured information from the description field. Thus we have a Character input and a CharacterMetadata output.

Define the output structure

# pipelex_libraries/pipelines/character_model.py
from pipelex.core.stuff_content import StructuredContent

# input class
class Character(StructuredContent):
    name: str
    age: int
    gender: str
    occupation: str
    description: str

# output class
class CharacterMetadata(StructuredContent):
    name: str
    age: int
    height: float

Let's use a template to fill prompts with data

💡 Our template syntax is based on Jinja2 syntax. You can include a variable using the classic {{ double.curly.braces }}, and to make it simpler, we've added the possibility to just prefix your variable with the @ symbol (recommended). Pipes declare their required inputs explicitly with the inputs table:

[concept]
Character = "A character from a book"
CharacterMetadata = "Metadata regarding a character."

[pipe]
[pipe.extract_character_1]
PipeLLM = "Get character information from a description."
inputs = { character = "Character" }  # <- These are the inputs of your pipe, usable in the prompt_template
output = "CharacterMetadata"
prompt_template = """
You are given a text description of a character.
Your task is to extract specific data from the following description.

@character.description
"""

💡 @character.description is substituted by grabbing the stuff named characterin the working memory and using its descriptionattribute

Learn more about how we use Jinja in the PipeLLM documentation.

This is how you do it from the code side

import asyncio

from pipelex.core.stuff_factory import StuffFactory
from pipelex.core.working_memory_factory import WorkingMemoryFactory
from pipelex.pipelex import Pipelex
from pipelex.pipeline.execute import execute_pipeline

from pipelex_libraries.pipelines.screenplay import Character, CharacterMetadata


async def process_existing_character():
    # Your existing data
    character = Character(
        name="Elias",
        age=38,
        gender="man",
        occupation="explorer",
        description="""Elias Varrin is a 38-year-old man, standing at approximately 1.85 meters tall, with a lean,
        weathered frame shaped by decades of travel through remote and often unforgiving landscapes.
        His name, though not widely known, carries weight among historians, explorers, and those who trade in whispered legends.
        Elias has piercing storm-gray eyes that scan every environment with sharp precision, and his ash-blond hair—flecked with
        early streaks of grey—is usually tucked beneath a wide-brimmed, timeworn hat.His hands are etched with fine scars and stained
        with ink, each mark a silent record of years spent charting unrecorded lands and handling fragile relics of lost civilizations.
        He moves with quiet purpose and speaks with a calm, thoughtful cadence that suggests he's always listening for more than just what's said.""",
    )
    # Wrap it into a stuff object
    character_stuff = StuffFactory.make_stuff(
        concept_code="character.Character", # <- `character` is the domain, `Character` is the concept name
        name="character",
        content=character,
    )
    # Add it to the working memory
    working_memory = WorkingMemoryFactory.make_from_single_stuff(
        stuff=character_stuff,
    )
    # Run the pipe identified by its pipe_code (it's the name of the pipe)
    pipe_output, pipeline_run_id = await execute_pipeline(
        pipe_code="extract_character_1",
        working_memory=working_memory,
    )

    # Get the result as a porperly typed instance
    extracted_metadata = pipe_output.main_stuff_as(content_type=CharacterMetadata) # <- This is the output of your pipe, properly typed

    print(extracted_metadata)


Pipelex.make()
asyncio.run(process_existing_character())
